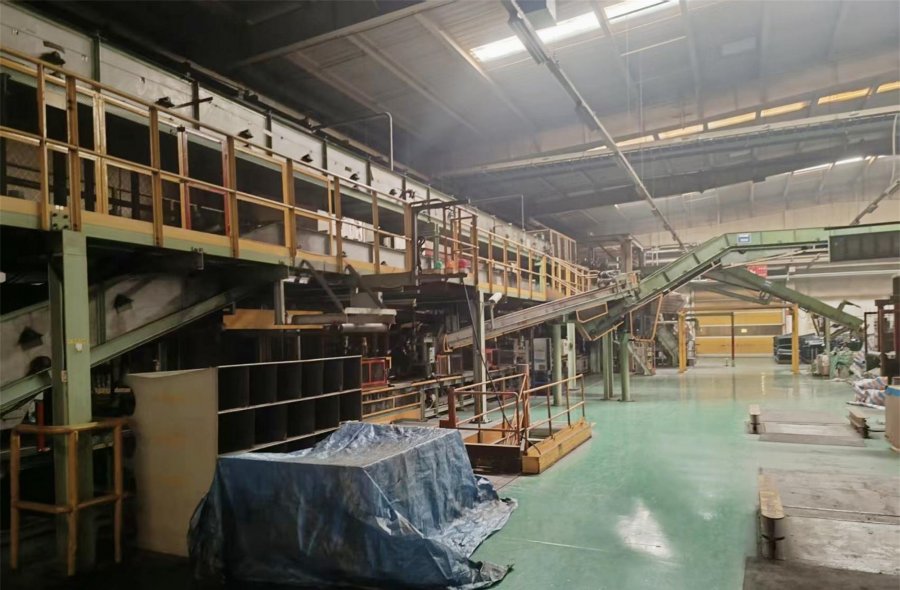

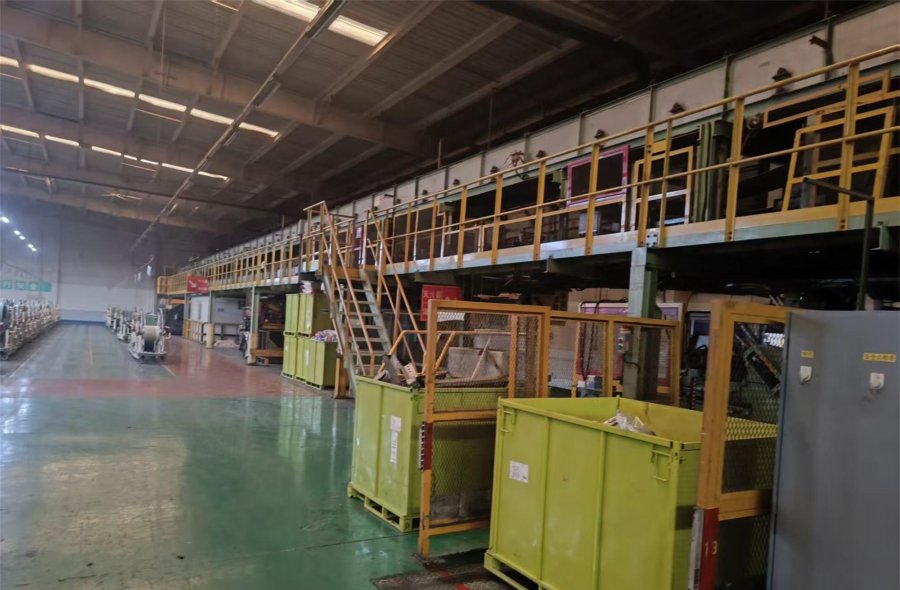

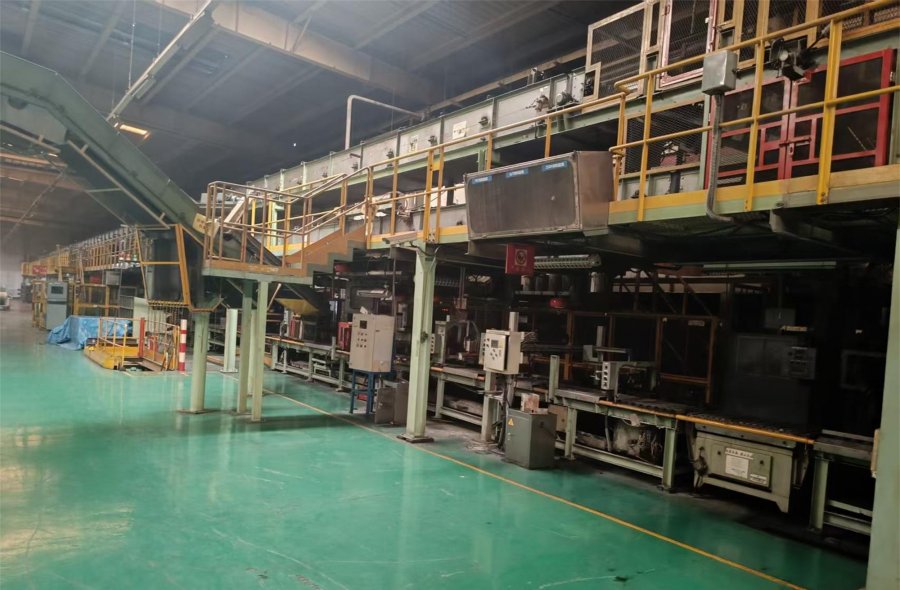

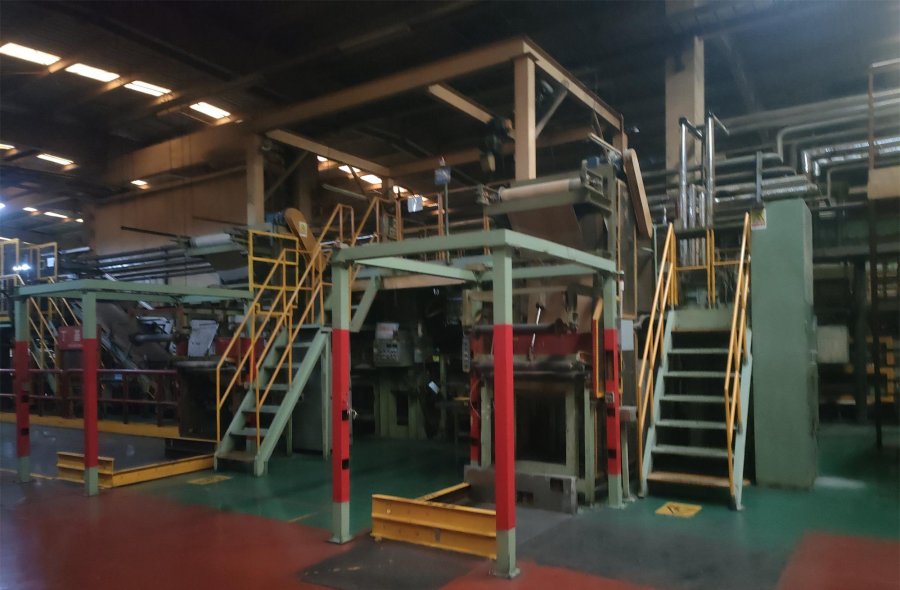

Used T/L Tread & Lip Extrusion Line For Sale

Our T/L Tread & Lip Extrusion Line is a fully integrated, high-performance production system designed for the manufacturing of passenger car, SUV, and light truck tire treads and bead fillers. Built on the proven configuration of 10"+6"+3.6" triple compound extruders (with optional dual 6" lip extruders), this line delivers exceptional process stability, dimensional accuracy, and production efficiency for high-quality tire components.

Inquire now

Product Details

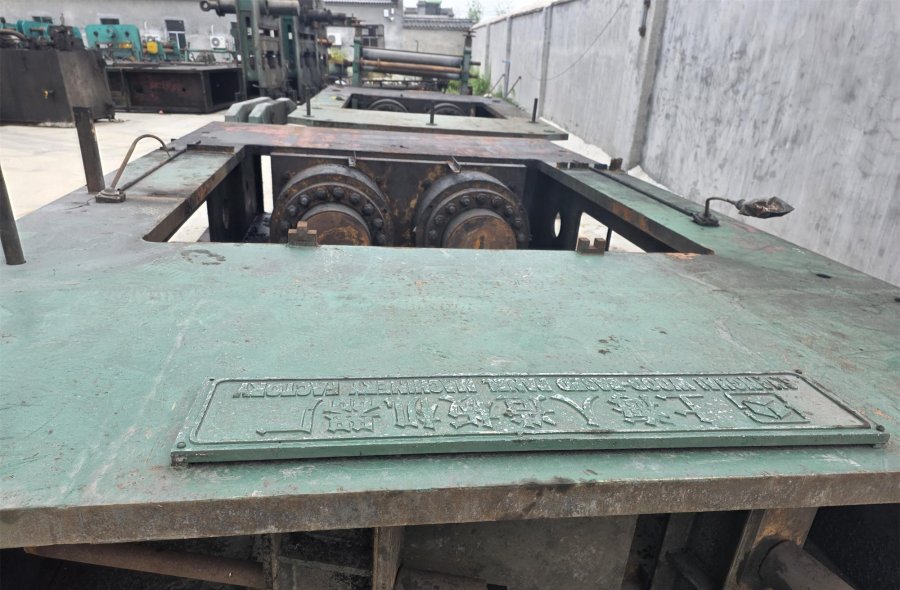

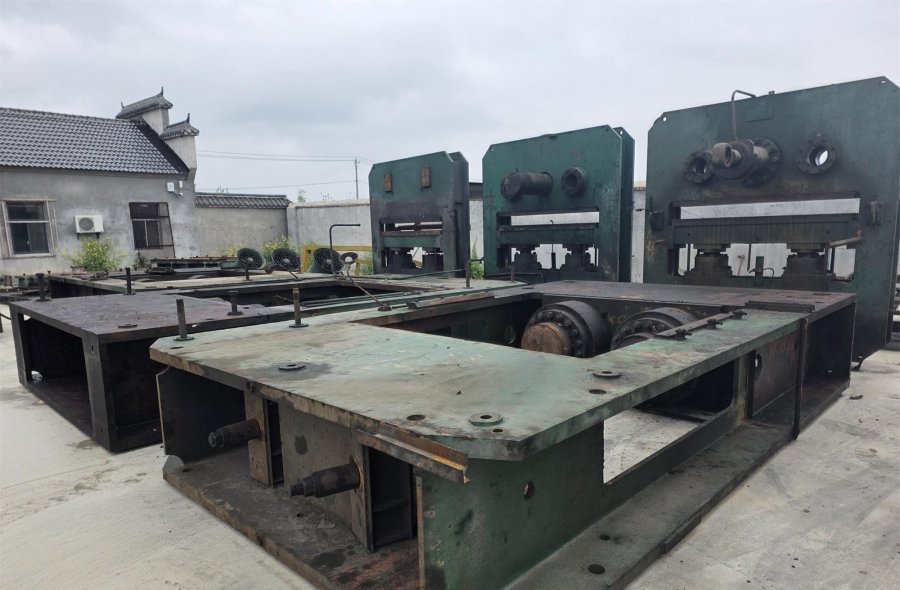

Open Mill Specifications

Open Mill Main Section

Item	Feed Roll	Second Roll	#1 First Roll	#2 First Roll
Specification	26×84"	26×84"	26×84"	26×84"
Diameter (F/B)	Φ660(26") / Φ660(26")	Φ660(26") / Φ660(26")	Φ660(26") / Φ660(26")	Φ660(26") / Φ660(26")
Surface Speed (F/B)	19.8m/min / 19.8m/min	19.8m/min / 19.8m/min	25.5m/min / 25.5m/min	25.5m/min / 25.5m/min
Surface Shape (F/B)	Smooth / Smooth	Smooth / Smooth	Smooth / Gear	Smooth / Gear
Rotation Ratio	1:1.04	1:1.04	1:1.08	1:1.08
Roll Type (F/B)	Drilled / Hollow	Drilled / Hollow	Hollow / Hollow	Hollow / Hollow
Tilting Roll	Yes	Yes	No	No
Motor	150kW	150kW	370kW	370kW

Tilting Roll

Roll Diameter: Φ260mm

Surface Speed: 120% of front roll speed

Feed Conveyor

Speed: 0 ~ 22.6 m/min (reversible)

Width: 500 mm

Max. Feed Width: 300 mm

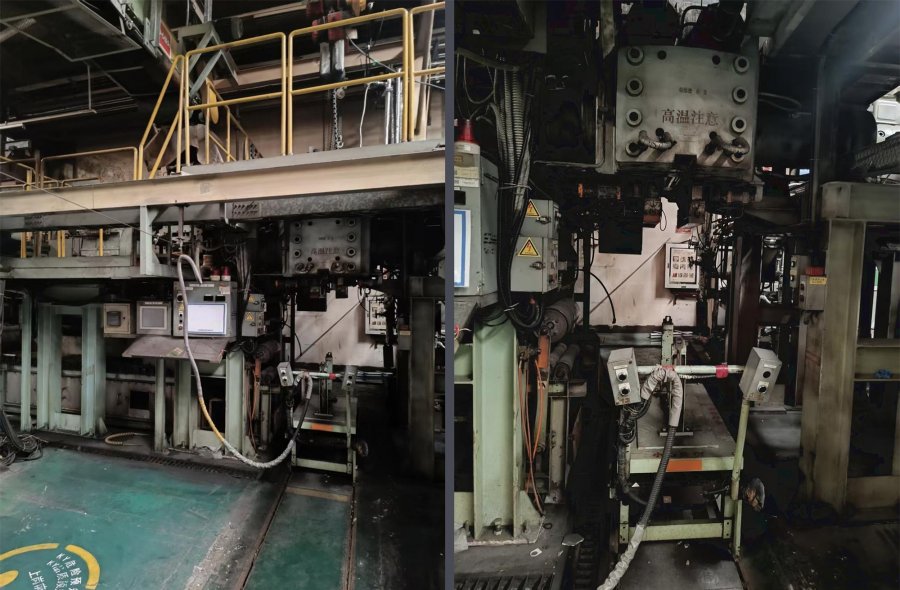

Extruder Head Peripheral Specifications

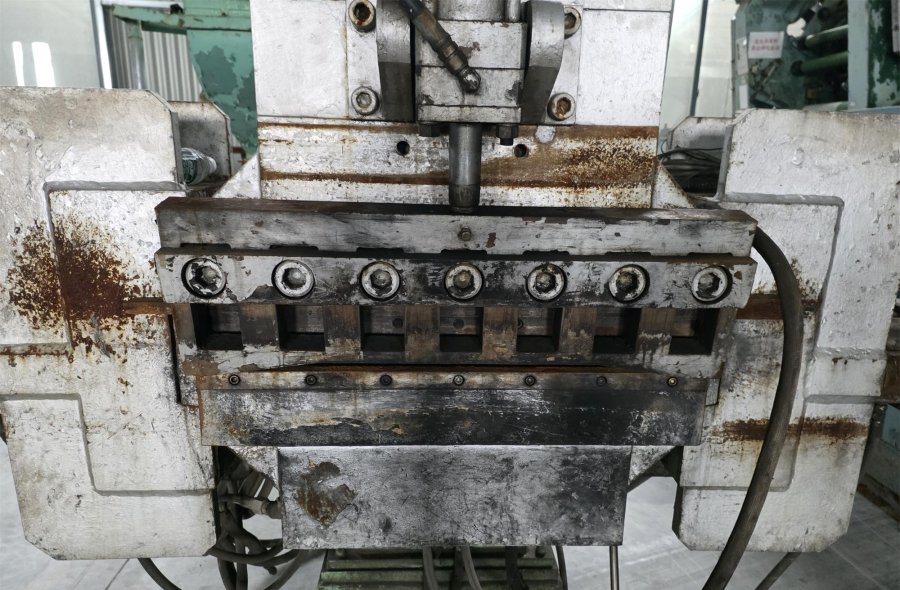

Extruder Outlet Size

10": 30mm × 400 mm

6": 25mm × 400 mm

Tooling Dimensions

Tool	Length	Width	Height
Base Preformer	600mm	95/105mm	55mm
Preformer Type A	600mm	45mm	20mm
Preformer Type B	600mm	40mm	20mm
Die Head	600mm	60mm	15mm

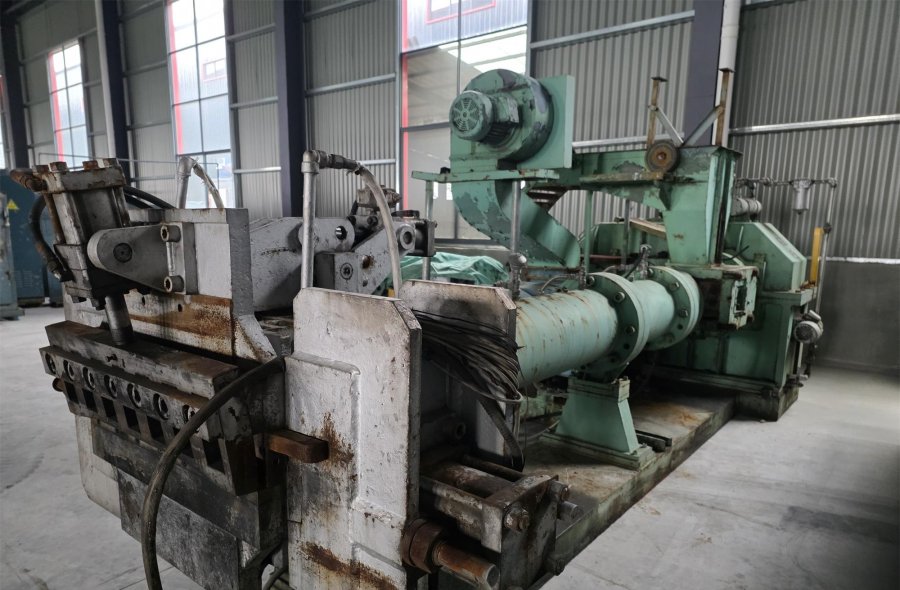

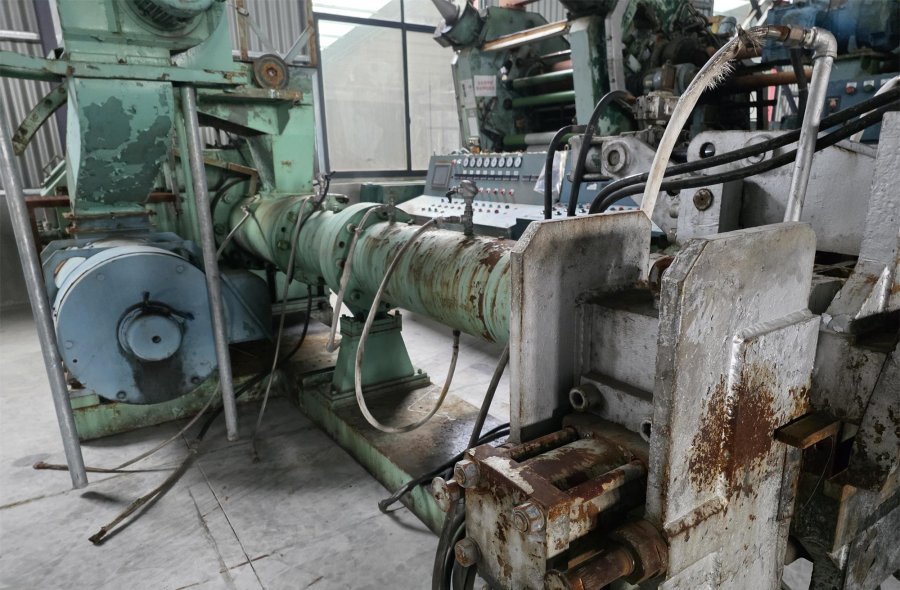

Extruder Specifications

Item	Structure
Extruder	10"(250HF) EXT	6"(150P) EXT	3.6"(90P) EXT
Screw
Diameter	Φ250 mm	Φ150 mm	Φ90 mm
L/D Ratio	6	16	16
Number of Pins	8×10	8×10	6×10
Max. Rotational Speed	46.4 rpm	42.8 rpm	42.0 rpm
Main Motor
Capacity	190kW @ 1150rpm	220kW @ 1150rpm	110kW @ 1150rpm

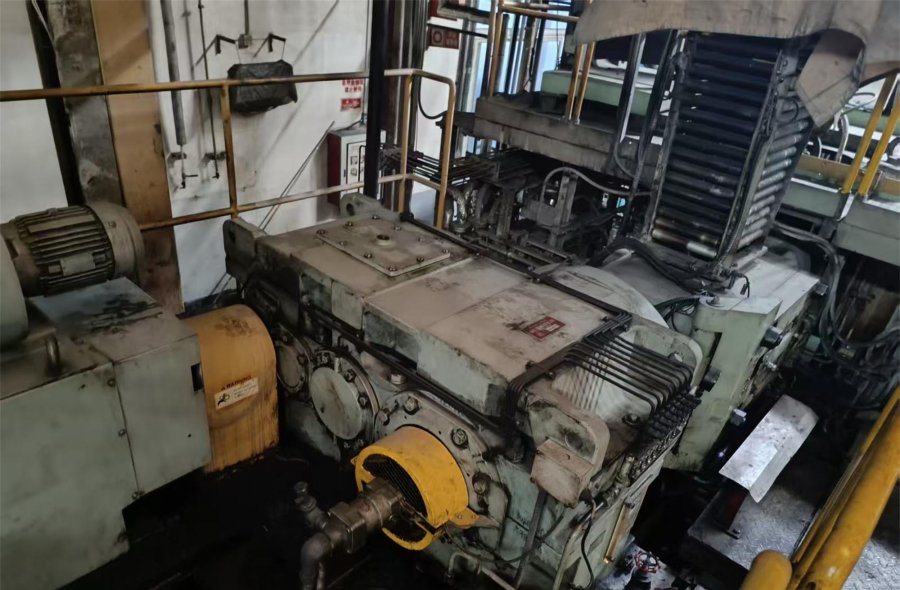

Gear Reducer
Capacity	190kW @ 1150rpm	220kW @ 1150rpm	110kW @ 1150rpm
Reduction Ratio	1/24.782	1/26.838	1/27
Type	PHD9095P3-DBF-25	PHD9085P3-RBG-28	—
Drive	Coupling CR8022-J	Coupling CR8022-J	—
Temperature Control Unit
Type	Direct-cooled	Direct-cooled	Direct-cooled
Zones	3	2	3
Capacity	0.75 kW/zone	0.75 kW/zone	22 m³/h
Temperature Range	50℃ ~ 95℃	50℃ ~ 95℃	0℃ ~ 95℃

Tread Base Rubber Laminating Equipment

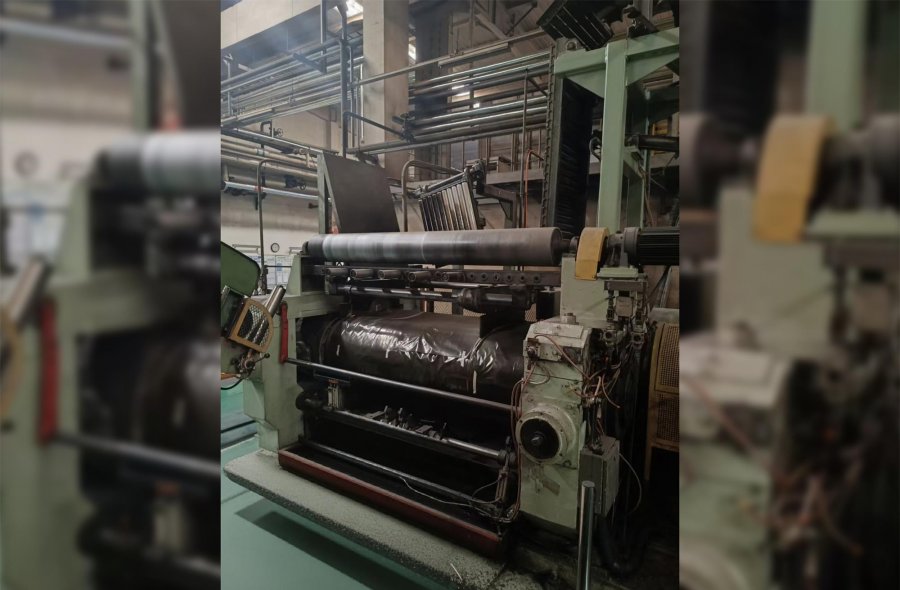

Ball Calender

Item	Specification
Roll Type	Hollow
Roll Size	Φ400×920mm (16"×36")
Rotation Ratio	1:1
Roll Gap	0.35~0.40mm
Front Roll Speed	3 ~ 32m/min
Motor	37kW
Cutter	2 disc cutters
