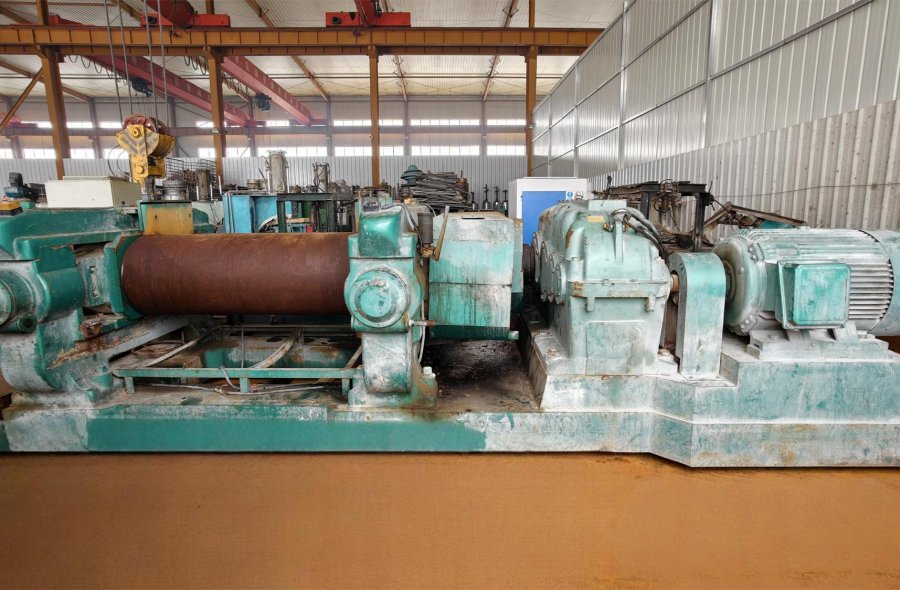

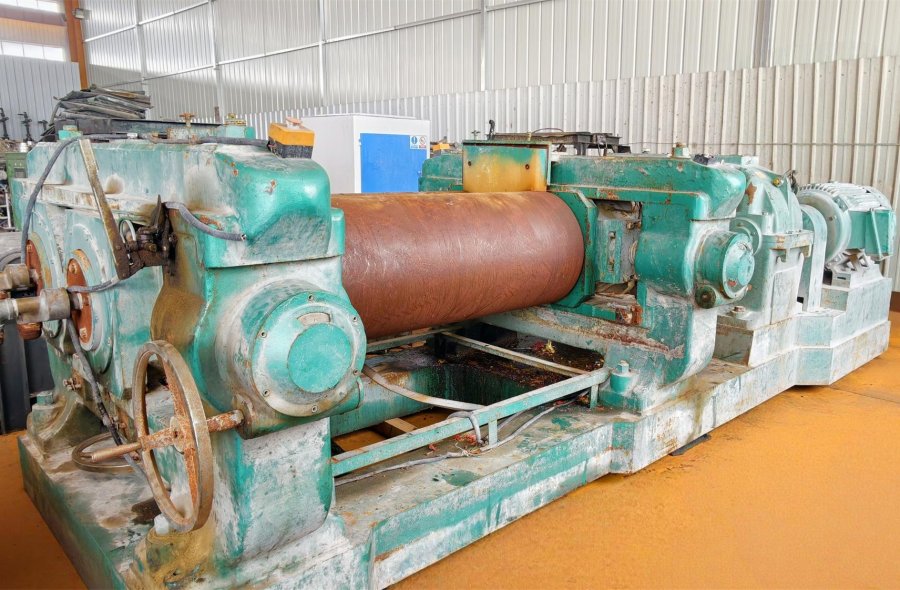

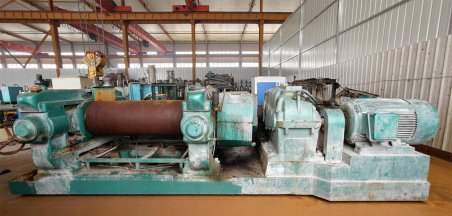

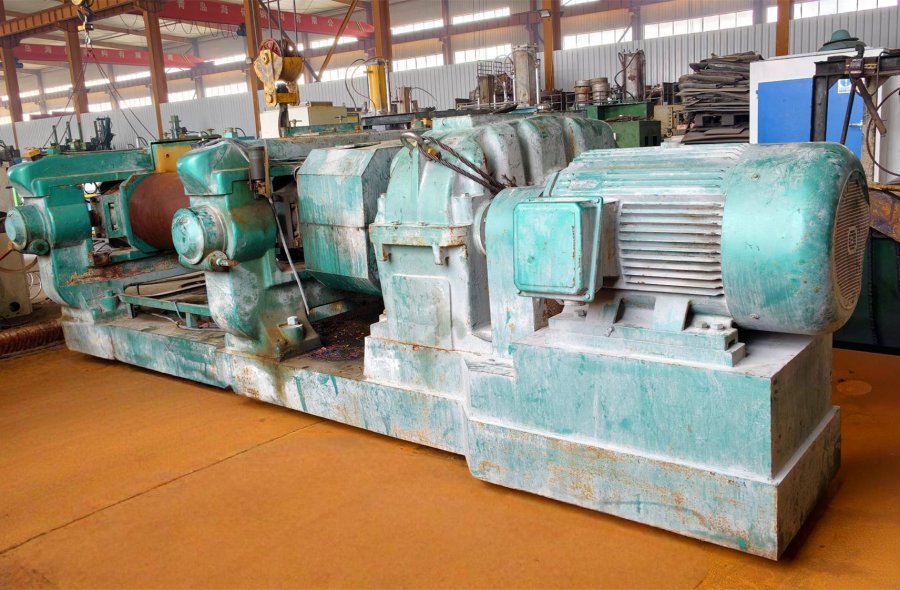

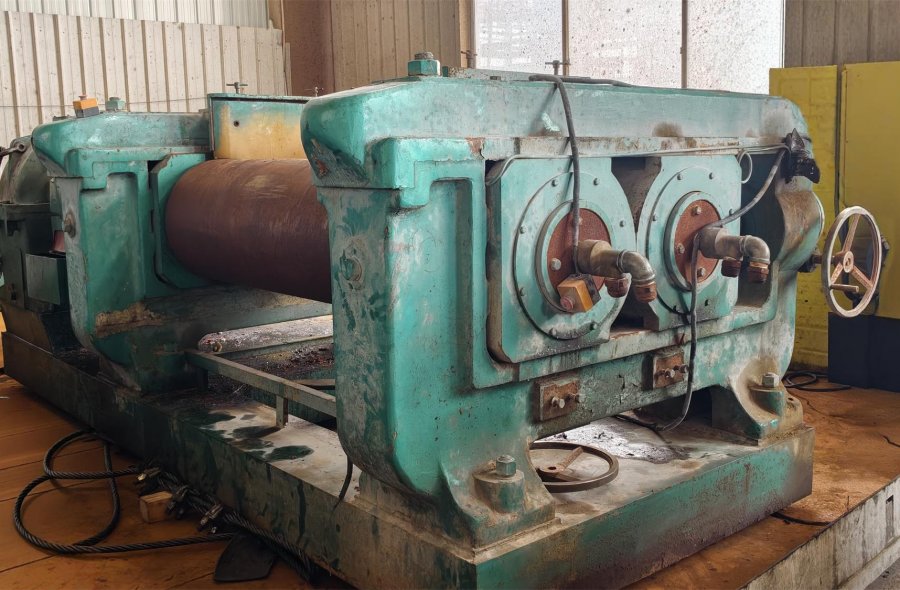

DFTMC XK-560 Bearing Type Open Mill With Hardened Gear Reducer

Roller diameter φ560mm

Roller length 1530mm

ZSY450-45-II, 3-stage hardened cylindrical gear reducer, ratio 45

Inquire now

Product Details

Item	Details
Model	XK-560 (Roller diameter φ560mm, roller length 1530mm, commonly known as "22-inch open mill")
Drive Type	Hardened gear reducer + universal joint drive, equipped with Jiangsu Kaibo ZSY450 reducer

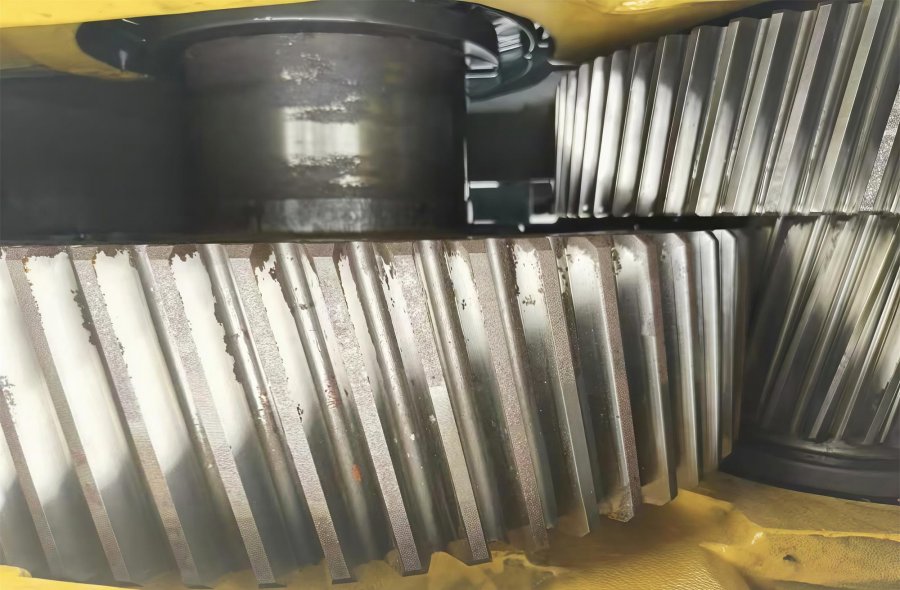

Reducer Model	ZSY450-45-II, 3-stage hardened cylindrical gear reducer, ratio 45, compatible with L-CKC220 industrial gear oil

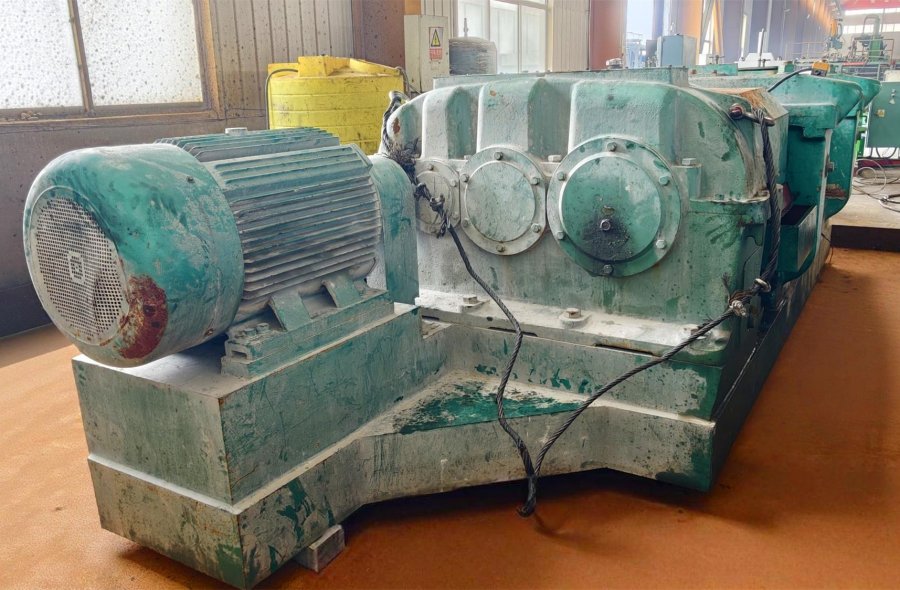

Main Motor	Model Y315M-6, power 110kW, speed 990r/min, suitable for 380V industrial power supply

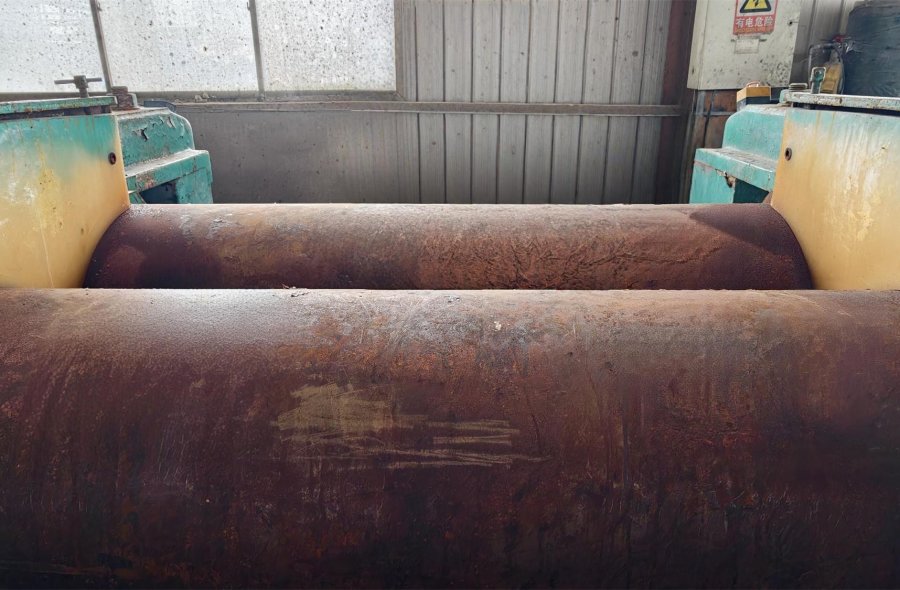

Roller Structure	Dual-roller design with manual gap adjustment and circulating cooling water system
Bearing Type	Roller bearing type (compared with traditional sliding bearings, lower friction and easier maintenance)
