XK-710 28" Open Mill

Roller Specification: Φ710×2200mm

Front & Rear Roller Speed Ratio: 1:1.07～1:1.25 (Adjustable)

Motor Power: 250kW / Dual Motor 132×2kW

Manufacturer: Yiyang Rubber Machinery


Inquire now

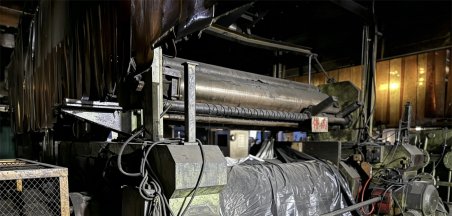

Used Yiyang Rubber Machinery 28 Open Mill XK-710 Rubber Sheeting Machine (2)

Product Details

ItemSpecification
ModelXK-710 (28" Two Roll Open Mill)
Roller Working DiameterΦ710 mm
Roller Working Length2200 mm
Front Roller Max Speed~32 m/min
Front & Rear Roller Speed Ratio1:1.07~1:1.25 (Adjustable)
Batch Capacity230 Kg per batch
Single Motor Power250 kW
Dual Motor Power132×2 kW
Motor Speed1000 rpm
Gap Adjusting Motor Power4×2 kW
Pull Roller Size (Optional)Φ290×2200 mm
Pull Roller Line Speed20-45 m/min
Pull Roller Motor Power7.5 kW
Swing Cycle25 S
Swing Range1650 mm
Overall Dimension (L×W×H)7200×3280×2250 mm
ManufacturerYiyang Rubber Machinery
