| Yearly 2.4Million TBR Tire Factory Machine List |
| 序号 | Workshop | Item | Model | Manufacturer | Qty. |
| 1 | Mixing Workshop | Final Batch Equip. | Banbury | XM-270(15×20×30×40)Y6 | Dalian DXS | 3 |
| 2 | Open Mixer | XKY-660E | Dalian DXS | 6 |
| 3 | Upper stream auxiliary system | F270 | Mesnac | 3 |
| 4 | Batch-off line | RSL-750 | Mudanjiang Sanjie Rubber Machinery Research Institute | 3 |
| 5 | Automatic rubber sheet up-lifting device | CR--ZDFJ-20-2000-31 | Qingdao Chenrui Electromechanical Engineering Co., Ltd. | 3 |
| 6 | Wig-wag device(metal detector） |
| Qingdao Chenrui Electromechanical Engineering Co., Ltd. | 3 |
| 7 | Rubber feeder (conveyor belt) |
| Self-Made Equipment | 3 |
| 8 | Centrifugal fan (feeding door) | 4-72No6A | Qingdao Yongjia | 3 |
| 9 | Centrifugal fan (open mill dust extraction) | CBA1400 | Guangzhou Aozhong Fan Equipment Co., Ltd. | 3 |
| 10 | Centrifugal fan (cooling line) | CBA1250 | Guangzhou Aozhong Fan Equipment Co., Ltd. | 3 |
| 11 | Pulse bag dust collector | DF108-90 | Qingdao Yongjia | 3 |
| 12 | Master Batch Equip. | Banbury | XM-370×(6～60)KY | Dalian DXS | 5 |
| 13 | Twin screw extruder | XJYSZ-416×936 | Dalian DXS | 5 |
| 14 | Batch-off line | JPL-800 | Mudanjiang Sanjie Rubber Machinery Research Institute | 5 |
| 15 | Upper stream auxiliary system | F370 | Mesnac | 5 |
| 16 | Wig-wag device |
| Qingdao Chenrui Electromechanical Engineering Co., Ltd. | 5 |
| 17 | Vacuum conveyor | Sprint65 | Schmalz (Shanghai) Vacuum Technology Co., Ltd. | 5 |
| 18 | Rubber Bale cutter | 660 | Qingdao Guangming Rubber Machinery Factory | 7 |
| 19 | Centrifugal fan (discharging dust extraction) | 4-72No5A | Qingdao Fan Factory Co., Ltd. | 5 |
| 20 | Centrifugal fan (extrusion dust extraction) | CBA1400 | Guangzhou Aozhong Fan Equipment Co., Ltd. | 5 |
| 21 | Centrifugal fan (cooling line) | CBA1250 | Guangzhou Aozhong Fan Equipment Co., Ltd. | 5 |
| 22 | Pulse bag dust collector | DF108-90 | Qingdao Yongjia | 5 |
| 23 | Pulse bag dust collector | DMC100 | Mesnac | 5 |
| 24 | Pulse bag dust collector | DMC18 | Mesnac | 30 |
| 25 | Pulse bag dust collector | DMC12 | Mesnac | 10 |
| 26 | Carbon black supply | Carbon black conveying system |
| Mesnac | 1 |
| 27 | Pulse bag filter | DMC12 | Mesnac | 1 |
| 28 | Heatless regenerative dryer | PH-750 | Mesnac | 1 |
| 29 | Air receiver | Volume: 15 m³, Design Pressure: 0.88 MPa | Mesnac | 1 |
| 30 | Centrifugal fan | 9-19 4A | Beijing Ventilator No.2 Factory | 1 |
| 31 | Daily storage tank |
| Mesnac | 40 |
| 32 | Screw feeder |
| Mesnac | 40 |
| 33 | Oil supply | Oil delivery system |
| Mesnac | 1 |
| 34 | Oil storage tank | 30 Cubic Meters | Mesnac | 2 |
| 35 | Grading tank |
| Mesnac | 2 |
| 36 | Chemicals supply | Automatic weighing system for master batch | 16Station | Mesnac | 2 |
| 37 | Ventilator | CQ24-J | Qingdao Fan Factory Co., Ltd. | 32 |
| 38 | Pulse bag dust collector | DMC-6 | Mesnac | 32 |
| 39 | Automatic weighing system for small batch final batch |
| Mesnac | 2 |
| 40 | Bag filter |
| Hebei Tuoyu Environmental Protection Technology Co., Ltd. | 1 |
| 41 | Manual batching belt |
| Self-Made Equipment | 1 |
| 42 | Manual batching dust collector |
| Hebei Tuoyu Environmental Protection Technology Co., Ltd. | 2 |
| 43 | Lab machines | Bale cutter |
| Norka Instruments (Shanghai) Co., Ltd. | 2 |
| 44 | MDR2000 Rubber Rotorless Rheometer | 81001 | Norka Instruments (Shanghai) Co., Ltd. | 3 |
| 45 | MV2000 Mooney Viscometer | M200E | Norka Instruments (Shanghai) Co., Ltd. | 8 |
| 46 | Norway Rotorless Rheometer | MFR100 LITe | Norka Instruments (Shanghai) Co., Ltd. | 2 |
| 47 | Carbon black dispersor | PRODUCT:1000 | Taiwan U-Can | 1 |
| 48 | Automatic rotorless rheometer | AUTO MFR 100+ | Norka Instruments (Shanghai) Co., Ltd. | 2 |
| 49 | Open rubber mixing mill | XKR-T152.5 | Guangdong Zhanjiang Machinery Factory | 1 |
| 50 | Platen curing press | XLB600*600*3 100T | Hongxing Forging Machinery Co., Ltd. | 1 |
| 51 | Platen curing press | 400*400*2 50T | Gaomi | 1 |
| 52 | Electronic tensile testing machine | 5KN-UT-2060 | Taiwan U-Can | 1 |
| 53 | Steel wire fuse | 2-13mm | Taiwan U-Can | 1 |
| 54 | Calendering workshop | Steel wire calendering | Steel wire calendering line | Φ550*1300 | Dalian DXS | 1 |

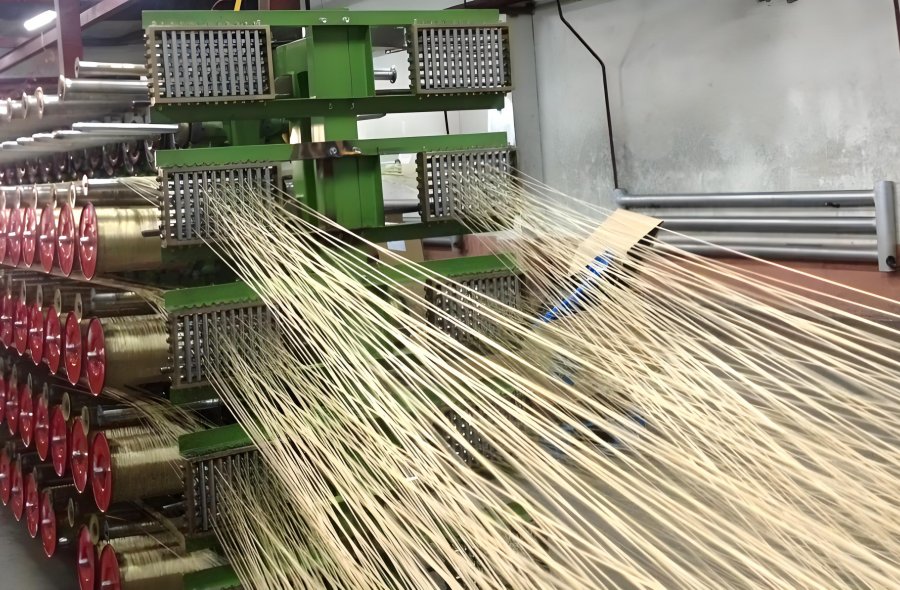

| 55 | Steel wire spindle placement mechanism | 121HA | Shagnhai Hewei | 1 |

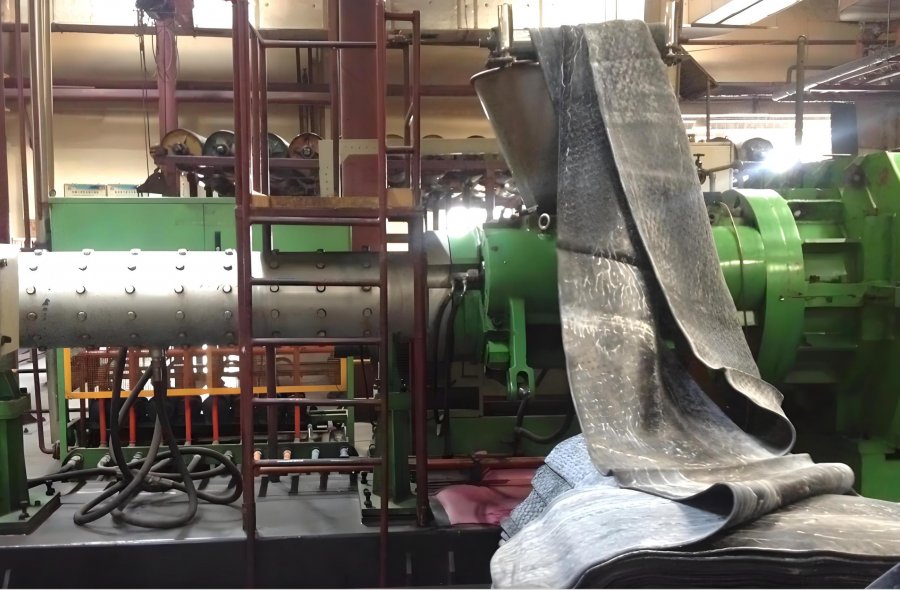

| 56 | Pin barrel cold feed extruder | 250*12D | Huagong baichuan | 2 |
| 57 | Open mill (fine refining) | XK-660 | Double star | 1 |

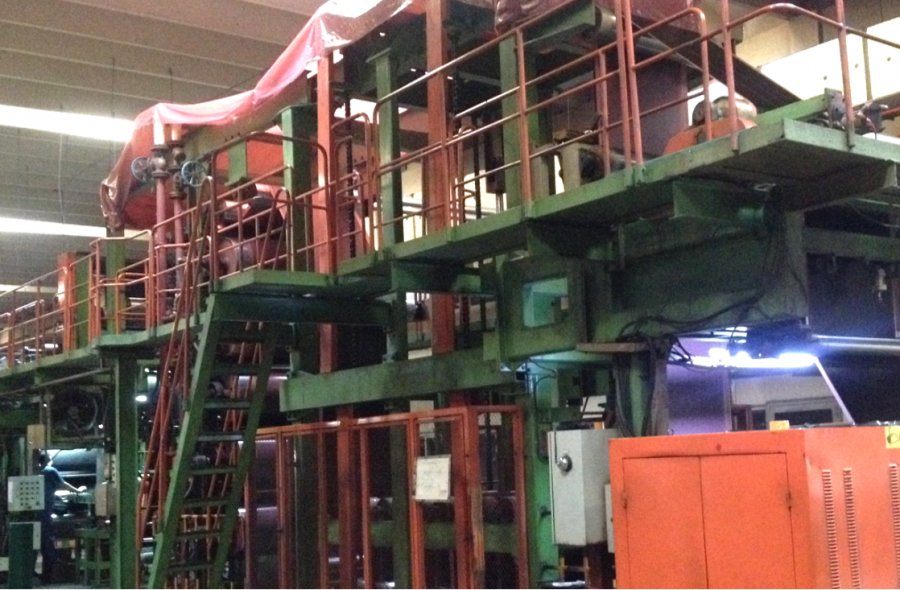

| 58 | Fiber fabric calendering | Fiber calendering line | φ610×1730S | Dalian DXS | 1 |
| 59 | Pin barrel cold feed extruder | 250*12D | Huagong baichuan | 2 |
| 60 | Open mixing mill (fine mixing) | XK-660 | Double star | 1 |
| 61 | Rubber film calendering | Thin rubber film calendering line | XIN10016 | Joymax Precision Machinery (China) Co., Ltd. | 2 |
| 62 | HF&CF Duplex extrusion | 250H200C dual-compound main machine [Zhongtian] | Φ250H×Φ200P | Japan | 2 |
| 63 | 250H200C dual-compound main machine [Zhonghe] | XJF-Φ250H×Φ200C | Guilin | 1 |
| 64 | Linked production auxiliary line |
| Mudanjiang Sanjie Rubber Machinery Research Institute | 3 |
| 65 | Pin barrel cold feed extruder | 250C | Guilin | 3 |
| 66 | Open mixing mill | XK-660 | Double star | 6 |
| 67 | HC Duplex extrusion | Φ250C/Φ200C duplex extruder | Φ250C/Φ200C | Tianjin TST | 1 |
| 68 | Linked production auxiliary line |
| Mudanjiang Sanjie Rubber Machinery Research Institute | 1 |
| 69 | Inner liner production | Inner lining production line | TST-LNB-JX10000 | Tianjin TST | 1 |
| 70 | 0° belt ply production line | 0° belt ply production line | LDF-X0 | Mudanjiang Sanjie Rubber Machinery Research Institute | 2 |
| 71 | Wire spindle placement mechanism |
| Shagnhai Hewei | 1 |
| 72 | Strip slitting machine |
| Self-Made Equipment | 1 |
| 73 | Splitter | Split machine | FG-600 | Nantong Xinrong Rubber & Plastic Machinery Co., Ltd. | 1 |
| 74 | Apexing machine | Four-drum vertical double-station hot apexing line | Four-Drum Vertical Double-Station | Xiamen Honghai | 3 |
| 75 | Bead&Cutting | Bead ring winding line | Double Bead winding line | TST-LGL-X | Tianjin TST | 2 |
| 76 | Single Bead winding line | TST-LGL-X | Tianjin TST | 3 |
| 77 | Double-station automatic wrapping machine | BWM-421 | Yalian | 4 |
| 78 | Bead diameter measuring instrument |
| Shandong Zhongyi Machinery Technology Co., Ltd. | 1 |
| 79 | Cutting Equip. | 90° Steel Cord Cutting Machine | 90° | Joymax Precision Machinery (China) Co., Ltd. | 2 |
| 80 | 15-70° Steel Cord Cutting Machine | 15°-70° | Joymax Precision Machinery (China) Co., Ltd. | 4 |
| 81 | Steel Cord Slitting Machine |
| Joymax Precision Machinery (China) Co., Ltd. | 1 |
| 82 | Multi-blade Longitudinal Cutting Machine | TST-XCQ-1000 | Tianjin TST | 2 |
| 83 | Fiber Cord Longitudinal Cutting Machine | XAL-1450 | Joymax Precision Machinery (China) Co., Ltd. | 1 |
| 84 | Fiber Cord Vertical Cutting Machine | XAL-1450 | State-owned Zhuanghe No.1 Rubber Machinery Factory | 1 |
| 85 | Building Workshop | Building Workshop | Two-Drum Building Machine LCZ-PDX | LCZ-PDX | Beijing | 6 |
| 86 | Two-Drum Building Machine LCZ-3K | LCZ-3K | Double star | 4 |
| 87 | Two-Drum Building Machine TST-LCZ-2RA20-24.5 | TST-LCZ-2RA20-24.5 | Tianjin TST | 12 |
| 88 | Two-Drum Building Machine LCZ-PB | LCZ-PB | Beijing | 11 |

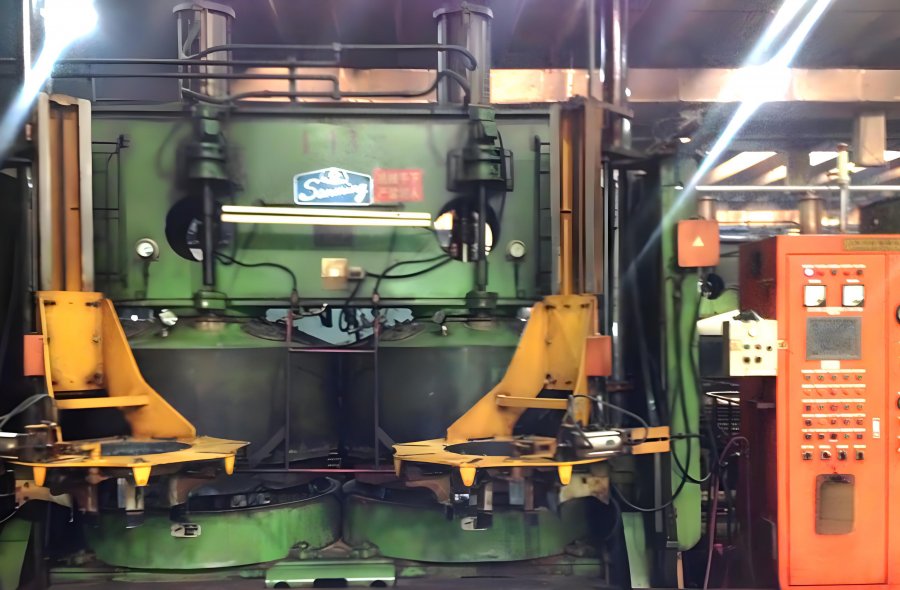

| 89 | Curing Workshop | Curing Workshop | Tire Dual-Mold Curing Press LL-B1600×4500×2 | LL-B1600×4500×2/LL-B1525×4300×2D | Sanming | 98 |
| 90 | Tire Dual-Mold Curing Press LL-B1525×4300×2D | LL-B1525×4300×2D/LL-B1640/4580×2 | Double star | 58 |
| 91 | Molds | Molds |
|
| 312 |
| 92 | Mold shells |
|
| 350 |
| 93 | Cleaning equipment |
|
| 1 |
| 94 | Inspection Workshop | Inspection | X-ray inspection machine | XTI-1525 | Liaoning Instrument Research Institute Co., Ltd. | 4 |
| 95 | All-steel radial truck tire dynamic balance tester |
|
| 1 |
| 96 | Transportation lines | Sorting and transportation line (including trimming machine) |
| Rongxing Machinery | 1 |
| 97 | Power Station | Nitrogen system | High-purity nitrogen production equipment |
|
|
|
| 98 | Nitrogen buffer tank (8m³) |
|
| 2 |
| 99 | High-pressure air storage tank (8m³) |
|
| 1 |
| 100 | High-pressure nitrogen booster |
|
|
|
| 101 | Recovered nitrogen booster |
|
|
|
| 102 | High-pressure nitrogen storage tank (8m³) |
|
| 1 |
| 103 | Filter |
|
| 1 |
| 104 | Gas-liquid separator (8m³) |
|
| 1 |
| 105 | Cooler |
|
|
|
| 106 | Refrigerated dryer |
|
|
|
| 107 | Recovered nitrogen storage tank (15m³) |
|
| 1 |
| 108 | Condensate drain tank (1m³) |
|
| 1 |
| 109 | Forming nitrogen storage tank (8m³) |
|
| 1 |
| 110 | High-pressure nitrogen surge tank (8m³) |
|
| 1 |
| 111 | Forming nitrogen surge tank (8m³) |
|
| 1 |
| 112 | Condensate recovery device | Condensate tank | 25m3 | Weifang Boiler Factory | 1 |
| 113 | SF centrifugal pump | SFZ80-50-200 | Beijing No.2 Water Pump Factory | 2 |
| 114 | Water circulation system | DG multi-stage centrifugal water pump | DG85-67×4 | China Tangshan Water Pump Factory | 5 |
| 115 | Power water tank (25m³) | 25m3 | Weifang Boiler Factory | 1 |
| 116 | Vacuum system | SK water ring vacuum pump | SK-27 | China Tangshan Water Pump Factory | 4 |
| 117 | Horizontal single-stage centrifugal pump | KQW65/200-7.5/2 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 2 |
| 118 | Rough vacuum tank | 25m3 | Weifang Boiler Factory | 1 |
| 119 | High vacuum tank | 12m3 | Weifang Boiler Factory | 1 |
| 120 | Air compressor | Energy-saving screw air compressor | SV200W-II | SEIZE Air Compressor (Shanghai) Co., Ltd. | 6 |
| 121 | Refrigerated compressor air dryer | SLAD-40NW | Hangzhou Shanli Purification Equipment Co., Ltd. | 9 |
| 122 | Air storage tank | 4m³ | Hangzhou Hongxiang Chemical Equipment Co., Ltd. | 6 |
| 123 | Micro-heat regeneration adsorption compressed air dryer | SLAD-25MXF | Hangzhou Shanli Purification Equipment Co., Ltd. | 1 |
| 124 | High-pressure centrifugal air compressor | HM1200 | HIMILE | 3 |
| 125 | Refrigeration system | Horizontal single-stage centrifugal pump | KQW250/315-75/4 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 16 |
| 126 | Water collection countercurrent Square cooling tower | 1600m³/h（4-Unit In-Line Arrangement） | Shandong Aorui Environmental Protection Equipment Co., Ltd. | 6 |
| 127 | Centrifugal chiller | 19XR6X67069VHJ52 | Yileng Carrier | 6 |
| 128 | Plate heat exchanger | BR0.47 | Tianjin Plate Heat Exchanger Factory Metal Structural Parts Plant | 3 |
| 129 | Softened water | Horizontal single-unit centrifugal pump | KQW65/315-4/4 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 2 |
| 130 | Horizontal single-unit centrifugal pump | KQW80/170-7.5/2 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 4 |
| 131 | Water tank | 24m³ | Shandong Green Group Co., Ltd. | 1 |
| 132 | Fully automatic water softening system | 40m³/h | Jining Sanhe Water Treatment Equipment Co., Ltd. | 2 |
| 133 | Low temperature water circulation device | Horizontal single-unit centrifugal pump | KQW200/400-75/4 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 5 |
| 134 | Water tank | 54m³ | Shandong Green Group Co., Ltd. | 1 |
| 135 | Water collection counterflow square cooling tower 1200mm | 1200m³/h（3-Unit In-Line Arrangement (4 Units in Total)） | Shandong Aorui Environmental Protection Equipment Co., Ltd. | 1 |
| 136 | Water collection counterflow square cooling tower 1600mm | 1600m³/h（4-Unit In-Line Arrangement (4 Units in Total)） | Shandong Aorui Environmental Protection Equipment Co., Ltd. | 1 |
| 137 | Water treatment |
|
| 1 |
| 138 | Low temperature water recovery device | Horizontal single-stage centrifugal pump | KQW80/185-11/2 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 2 |
| 139 | Quartz sand shallow filter | DMF5624-8 | Shandong Puhe Energy Conservation Technology Co., Ltd. | 1 |
| 140 | Water handling device | Horizontal single-unit centrifugal pump | KQW100/315-11/4 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 3 |
| 141 | Counterflow square cooling tower | 60m³/h（2-Unit In-Line Arrangement） | Shandong Green Group Co., Ltd. | 1 |
| 142 | Pressure tank | 36m³ | Dongying Gerunfeng Environmental Protection Technology Co., Ltd. | 1 |
| 143 | Pure water tank | 54m³ | Jining Sanhe Water Treatment Equipment Co., Ltd. | 1 |
| 144 | Reverse osmosis unit | 10m3/h | Jining Sanhe Water Treatment Equipment Co., Ltd. | 1 |
| 145 | Media filter | 50m3/h | Jining Sanhe Water Treatment Equipment Co., Ltd. | 1 |
| 146 | Condensate cooling device | Horizontal single-unit centrifugal pump | KQW150/285-18.5/4 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 1 |
| 147 | Horizontal single-unit centrifugal pump | KQW80/170-7.5/2 | Shanghai Kaiquan Pump (Group) Co., Ltd. | 1 |
| 148 | Water tank | 54m³ | Shandong Green Group Co., Ltd. | 3 |
| 149 | Media filter | 50m³/h | Jining Sanhe Water Treatment Equipment Co., Ltd. | 2 |
| 150 | High-temperature counterflow square cooling tower | 200m³/h | Shandong Aorui Environmental Protection Equipment Co., Ltd. | 2 |
| 151 | Spindle Room | Dehumidifier | CRTZ50 | Nanjing Wuzhou Refrigeration Group Co., Ltd. | 4 |
| 152 | Workshop in Area A | Air conditioning unit | ZKW-80 | Beijing Beikong Air-Conditioning Co., Ltd. | 6 |
| 153 | Workshop in Area B | Air conditioning unit | ZK-80 | Dezhou Wuzhou Artificial Environment Equipment Co., Ltd. | 14 |
| 154 | Workshop in Area C | Air conditioning unit | ZKW-60 | Beijing Beikong Air-Conditioning Co., Ltd. | 6 |
| 155 | Workshop in Area C | Diagonal flow fan | GXY | Dezhou Wuzhou Artificial Environment Equipment Co., Ltd. | 3 |
| 156 | Workshop in Area C | High-temperature fire exhaust fan | HTF-111 | Dezhou Wuzhou Artificial Environment Equipment Co., Ltd. | 5 |
| 157 | Power facilities | High-voltage cabinet |
|
|
|
| 158 | Transformer |
|
| 1 |
| 159 | Low-voltage switchgear |
|
|
|
| 160 | Filter cabinet |
|
|
|
| 161 | Workshop low-voltage cabinet |
|
|
|
| 162 | Bridge |
|
| 1 |
| 163 | Housing transformer |
|
|
|
